INGEO can offer the 3D scanning service with a VIVID 910 non-contact 3D laser scanner (Konica Minolta). The VIVID 910 non-contact 3D laser scanner is a portable instrument for the acquisition of three-dimensional images used with software included. Suitable to any object or surface is used by INGEO for applications in the field of garments, for applications of reconstructive surgery, for maxillofacial applications and for orthopedic applications. However, VIVID 910 non-contact 3D laser scanner can be used in veterinary medicine, in cosmetics, in forensic medicine and for all that concerns the non-contact 3D scanning (click here to download the brochure of the most innovative applications).
 VIVID 910 is the ideal 3D capture device for research and development, design, schools, game software, video production, apparel industry, museums and measurement of the human body.
The VIVID 910 laser scanner employs laser-beam light sectioning technology to scan workpieces using a slit beam. Light reflected from the workpiece is acquired by a CCD camera, and 3D data is then created by triangulation to determine distance information.
The laser beam is scanned using a high-precision galvanometric mirror, and 640×480 individual points can be measured per scan.
Konica Minolta's unique high-speed image processing chips have been integrated in order to ensure rapid measurement, and this has made it possible to complete measurements in 2.5 seconds (or in as little as 0.3 seconds in FAST mode).
In particular, when operating in FAST mode, this advanced product requires only 0.3 seconds for data input; furthermore, when operating in FINE mode, precision of ± 0.008mm and accuracy of ± 0.10mm can be achieved on the Z-axis.
Object, mesh and surfaces achieved by means of 3D scanning.
In addition to distance data, this 3D scanner can also be used to acquire color image data. Employing a rotating filter to separate the acquired light, the VIVID 910 can create color image data for 640×480 points with the same CCD as used for distance data.
A high-precision galvanometric scanner is used together with highly accurate adjustment-chart equipment to ensure high-accuracy calculation of 3D data by the VIVID 910.
 What's more, polygon-editing software is included with this product as a standard accessory. Using this application, you will be able to automatically align and combine a number of 3D data sets acquired from different angles.
With the VIVID 910 laser scanner, even higher levels of precision can be acquired in the alignment of data segments.
Previous technologies could not efficiently acquire data for surface sections containing both light and dark colors in a single operation. But you can now use Dynamic Range Expansion mode - a cutting-edge VIVID 910 technology - to digitize this type of surface with one scan and without the need for additional surface processing.
Principal applications of VIVID 910 laser scanner
| • |
Precision verification and component examination for casting and injection molding (see PELTON blade for energy application below)
|
| • |
Creation of FEA data for pressed automobile-chassis components, etc., in addition to verification of analysis results |
| • |

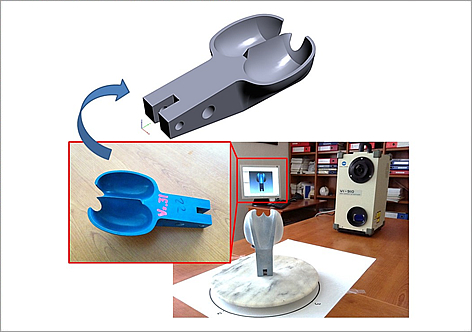

Creation of 3D data for the evaluation of accessories and other purchased parts for which 3D CAD data are unavailable (i.e., reverse engineering) (see parts of pliers below courtesy from O.M.S. Erba-COMO)
|
| • |
Conversion of dental-surgery and plastic-surgery data into database format |
| • |
Creation of design data from mock-ups and interference-check data for mechanical components
|
| • |
Integration with rapid-prototyping devices for the creation of plastic mockups
|
| • |

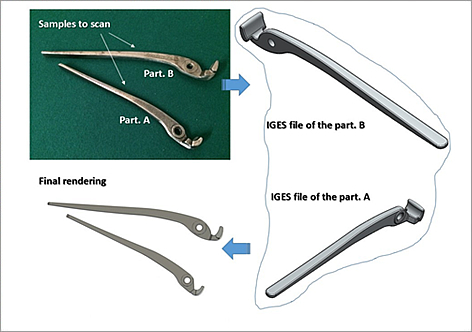

Comparison of in-house products with those of rival companies, and conversion of the acquired data into database format (orthopedic parts from M&K Trading Treviglio-BERGAMO)
|
| • |
Archiving in museums and research organizations |
| • |
Creation of data for CAE analysis |
| • |
3D modeling of solid objects for various research purposes (Hand controller AALEA - Roma)
|
| • |
Information (below 3D models used by ENEAS INFORMATICA Srl for simulations in fashion) and communication engineering, expression analysis, muscle-movement analysis, robot vision, and logging of agricultural produce growth
|
| • |
Various video-authoring applications |
As can be seen, the VIVID 910 fulfills a critical role in a wide range of diverse fields.
Some examples of 3D scanning made by INGEO using VIVID 910
 |

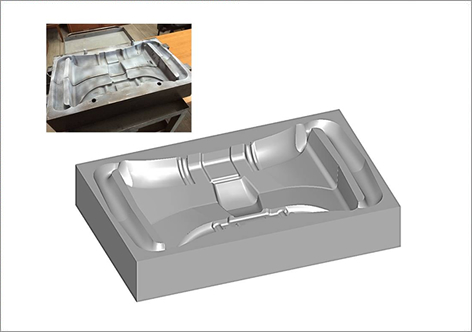

| Detail of mold foundry and 3D scanning |
 |
| Mold particular, 3D scanning and modeling |
 |
| Dummy man and 3D scanning |
 |
| Mannequin hand (woman) and 3D scanning |
 |
| Mannequin head (woman) and 3D scanning |
 |
| THUN elephant and 3D scanning |
 |
| Bust of Pharaoh and 3D scanning |
 |
| Leg of a bathtub and 3D scanning |
 |
| Head of Aboriginal and 3D scanning |
 |
| Carved column and 3D scanning |
 |
| Carved column with leaves and fruit and 3D scanning |
 |
| Carved column and 3D scanning |
 |
| Carved column and 3D scanning |
 |
| Carved column and 3D scanning |
 |
| Outer casing of a model car and 3D scanning |
 |
| Industrial parts and 3D reconstruction from scanning process |
 |
| STEP file from 3D scanning process (courtesy from MORIGGI Busto Arsizio-VARESE) |
Technical specifications of VIVID 910 laser scanner
Model |
Non-contact 3D digitizer VI-910 |
Measurement method |
Triangulation light block method |
Autofocus |
Image surface AF (contrast method); active AF |
Light-receiving lenses (Exchangeable) |
TELE: Focal distance f=25mm
MIDDLE: Focal distance f=14mm
WIDE: Focal distance f=8mm |
Scan range (depth of field) |
0.6 to 2.5m (2m for WIDE lens) |
Optimal 3D measurement range |
0.6 to 1.2m |
Laser class |
Class 2 (IEC60825-1), Class 1 (FDA) |
Laser scan method |
Galvanometer-driven rotating mirror |
X-direction input range (varies with distance) |
111 to 463mm (TELE), 198 to 823mm (MIDDLE), 359 to 1196mm (WIDE) |
Y-direction input range (varies with distance) |
83 to 347mm (TELE), 148 to 618mm (MIDDLE), 269 to 897mm (WIDE) |
Z-direction input range (varies with distance) |
40 to 500mm (TELE), 70 to 800mm (MIDDLE), 110 to 750mm (WIDE/FINE mode) |
Accuracy |
X: ±0.22mm, Y: ±0.16mm, Z: ±0.10mm to the Z reference plane (Conditions: TELE/FINE mode, Konica Minolta's standard) |
Input Time |
0.3s (FAST mode), 2.5s (FINE mode), 0.5s (COLOR) |
Transfer time to host computer |
Approximately 1s (FAST mode) or 1.5s (FINE mode) |
Ambient lighting condition |
500 lx or less |
Imaging element |
3D data: 1/3 inch frame-transfer CCD (340,000 pixels)
Color data: 3D data is shared (color separation by rotary filter) |
Number of output pixels |
3D data: 307,000 (FINE mode), 76,800 (FAST mode)
Color data: 640 × 480 × 24 bits color depth |
Output format |
3D data: Konica Minolta format (& STL, DXF, OBJ, ASCII points, VRML; converted into 3D data by Polygon Editing Software provided as a standard accessory)
Color data: RGB, 24-bit raster scan data |
Recording medium |
Compact flash memory card (128MB) |
Data file size |
Total 3D data and color data capacity: 1.6MB (FAST mode) per data, 3.6MB (FINE mode) per data |
Viewfinder |
5.7-inch LCD (320 × 240 pixels) |
Output interface |
SCSI II (DMA synchronous transfer) |
Power |
Commercial AC power 100V to 240V (50 or 60Hz), rated current 0.6A (at 100V) |
Dimensions (W × H × D) |
213 × 413 × 271mm (8-3/8 × 16-1/4 × 10-11/16 in.) |
Weight |
Approx. 11kg (25 lbs.) |
Operating temperature / humidity range |
10 to 40°C, relative humidity 65% or less with no condensation |
Storage temperature / humidity range |
-10 to 50°C, relative humidity 85% or less (at 35°C) with no condensation |
You can download a PDF brochure of VIVID 910 NON-CONTACT 3-D DIGITIZER KONICA MINOLTA CLICKING HERE.
For further informations about 3D scanning, please contact PhD Luigi Paracchini, phone number +39 0321 921654 (during office hours), or send an email to info@ingeosnc.it
|
